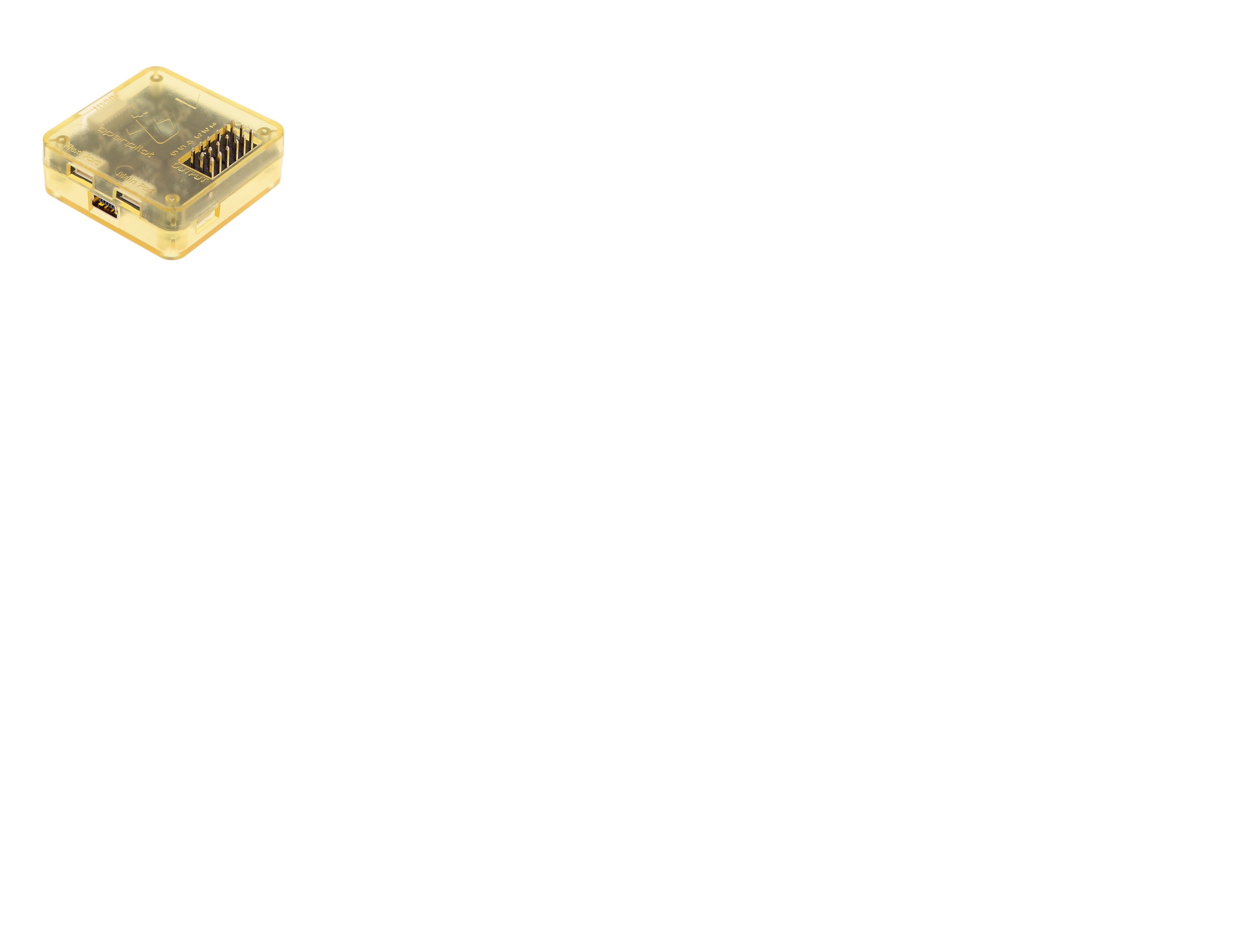

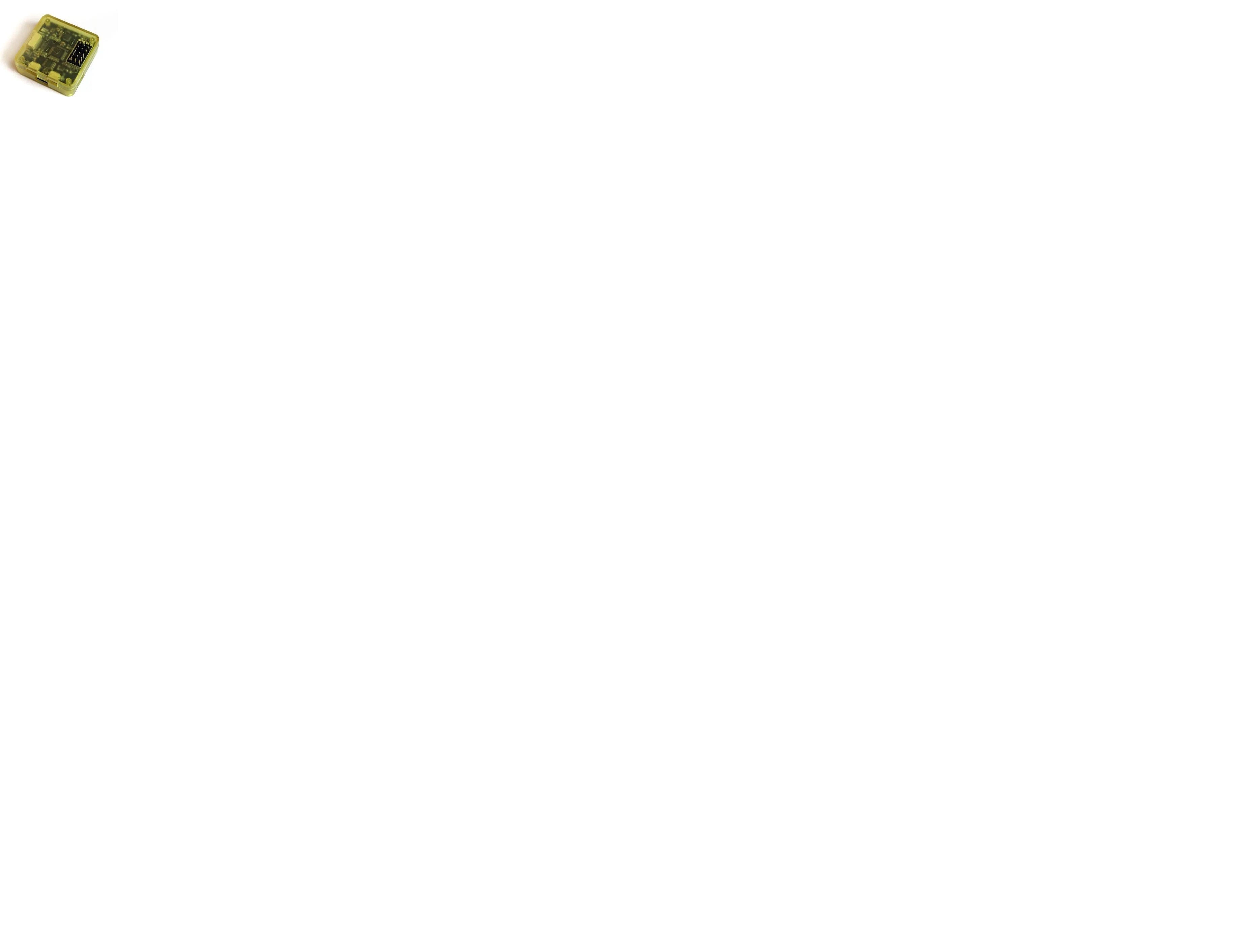

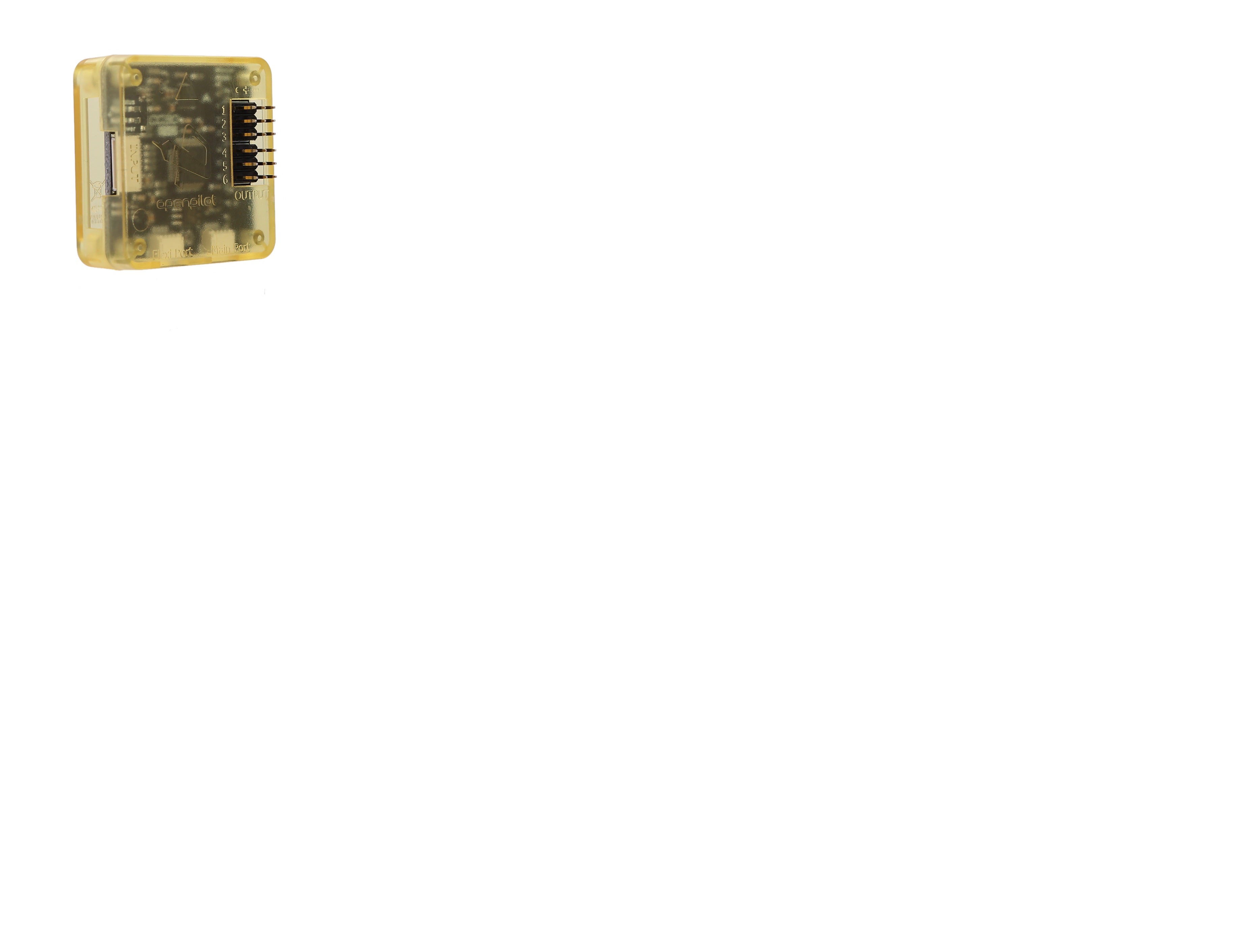

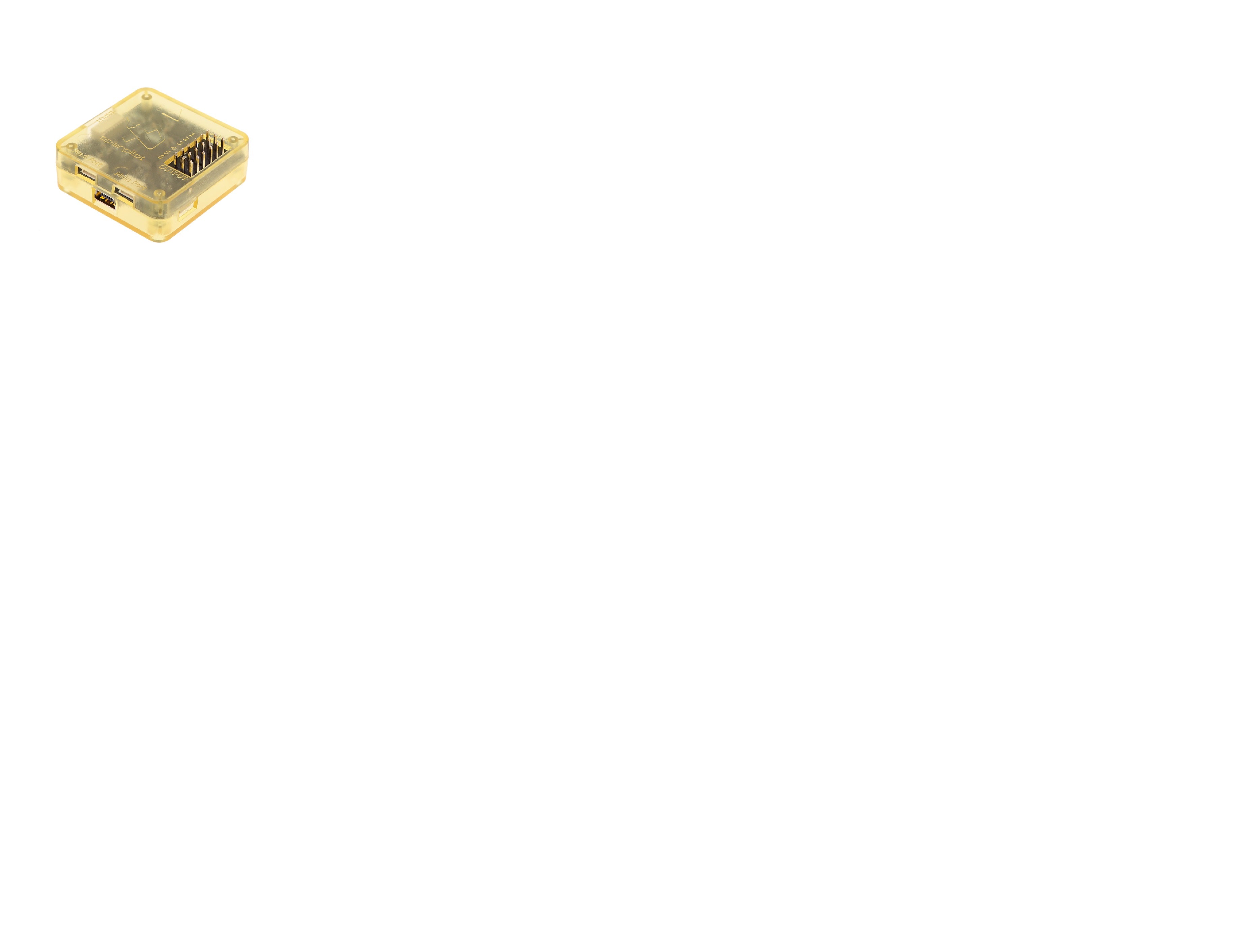

OpenPilot CC3D EVO Flight Controller Straight Pin

OpenPilot CC3D EVO Flight Controller Straight Pin

This OpenPilot CC3D EVO Flight Controller Straight Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. It also supports S.BUS. Evo is equipped with a powerful 32-bit STM32 processor with 128kb Flash and 20kb RAM. The 3-axis MEMs technology is used for both gyro and accelerometer.

The OpenPilot CC3D EVO Flight Controller Straight Pin card is easy to use with your computer. With USB and OpenPilot software, the card can be programmed in Windows, Mac, or Linux without the need for any drivers to install. OpenPilot is a very user-friendly program designed to be used by anyone, regardless of programming experience.

The OpenPilot CC3D EVO Flight Controller Straight Pin and OpenPilot CC3D EVO Flight Controller side Pin boards may not have any technical difference. There is the only difference between connector pins.(one has a Straight pin and other have 90º side pin.)

Note: Please don’t flash/Update the Default firmware. Updated or new firmware may cause a problem of connectivity with PC/Laptop. This OpenPilot CC3D EVO Flight Controller is available in black & white colored PCBs, you may get any of them randomly.

Features :

CC3D EVO Hardware Features :

1. WIth a function of being directly plugged into the satellite receiver(It needn’t conversion cable)
2. Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
3. 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
4. Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
5. Software support for Windows, Mac, and Linux.
6. Direct high-speed USB support with no drivers required, a true plug and play device.
7. Spektrum satellite receiver support.
8. Futaba S-BUS hardware support.
9. Innovative Flexi-port technology for superior port flexibility.
10. 4Mbits onboard EEPROM for configuration storage.

Flexiport :

• Copter Control also offers the innovative Flexiport which provides either I2C connectivity or a second serial port. Flexiport gives Copter Control the flexibility to use either I2C and a single serial port or dual serial port, according to your connectivity needs.

Superior user experience :

1. OpenPilot has tried to make your experience with the CC3D as easy and trouble-free as possible. Naturally, for a high-end product, the hardware is complete; there is nothing to solder. The included RC  harness allows you to connect any standard PWM receiver.  All CopterControl boards are tested before shipping and come with bootloader already flashed.
2. A standard mini USB  cable (not includes) is used to load the latest firmware and configure everything for your unique airframe. The OpenPilot project, whilst still young, it trying to make Open Source much more user-friendly.
3. OpenPilot software is designed to be used by everybody! All major operating systems are supported and install packages are provided.
4. The software is all Free software under the GPLv3 license and not only are you welcome to hack it, but we encourage it.

Sensors and Components :

1. 3-axis Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,
2. Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,  DSMJ, DSMX satellites, and Futaba S.Bus receivers.
3. Simultaneous support for multiple receivers.
4. ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels
5. MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites
6. FlexiPort (configurable): serial telemetry, GPS, Spektrum/JR satellites, or I2C peripherals (under  development)
7. 10 PWM outputs to servos or ESC’s, or for camera stabilization
8. Camera stabilization supports up to 3axis  camera mounts with stabilization and manual control from any of configured receivers.
9. Onboard USB connectivity for easy configuration.
10. USB and serial telemetry and configuration
11. Supported by powerful OpenPilot GCS
12. 4 Mbit onboard memory
13. 3C Quaternion based complementary filter running at 500Hz

Package Includes :

1 x OpenPilot CC3D EVO Flight Controller Straight Pin

2 x Connecting Wires.

1 x PC plastic shell

Tutorial Links :

Configure OpenPilot CC3D Evo
